Use of cookware directly on the worktop in combination with 12 mm Dekton worktop

Integrated 21 cm cooking zone with booster function

Cooking zone center light for operation and residual heat indication directly on the surface

Can be combined perfectly with other integrated induction modules of the 400 series

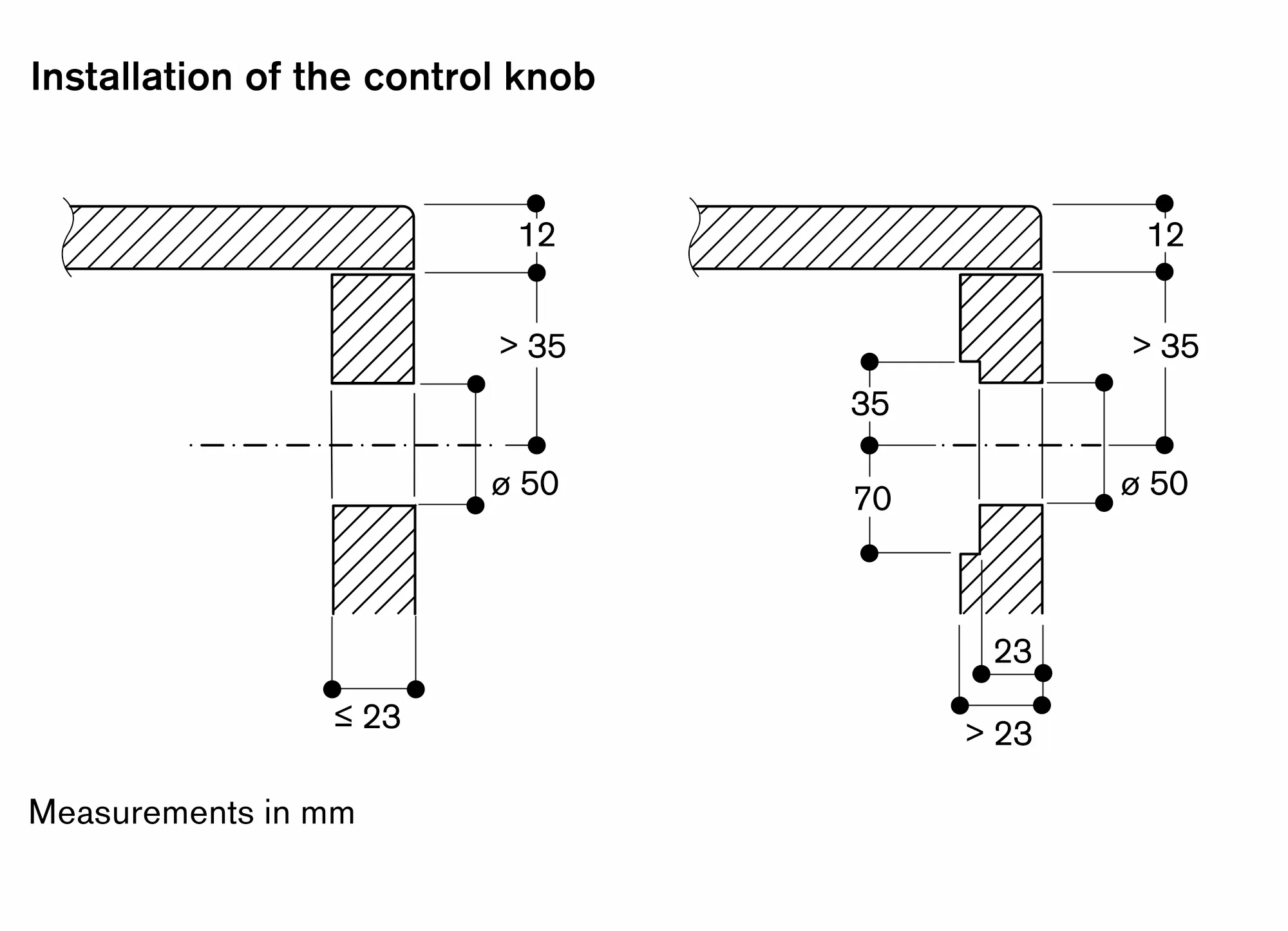

Solid stainless steel control knob or black control knob available; this must be purchased separately

1 induction cooking zone ø 21 cm (2000 W, with booster 2300 W).

Control knobs with illuminated ring, cooking zone and output level markings.

Electronic power control in 12 output levels.

Cooking zone center light indication.

Booster function.

Keep warm function.

Options menu.

Only operates with enhanced surface protector.

Operation indicator.

Pot detection.

2-stage residual heat indication directly on the surface and knob.

Safety shut-off.

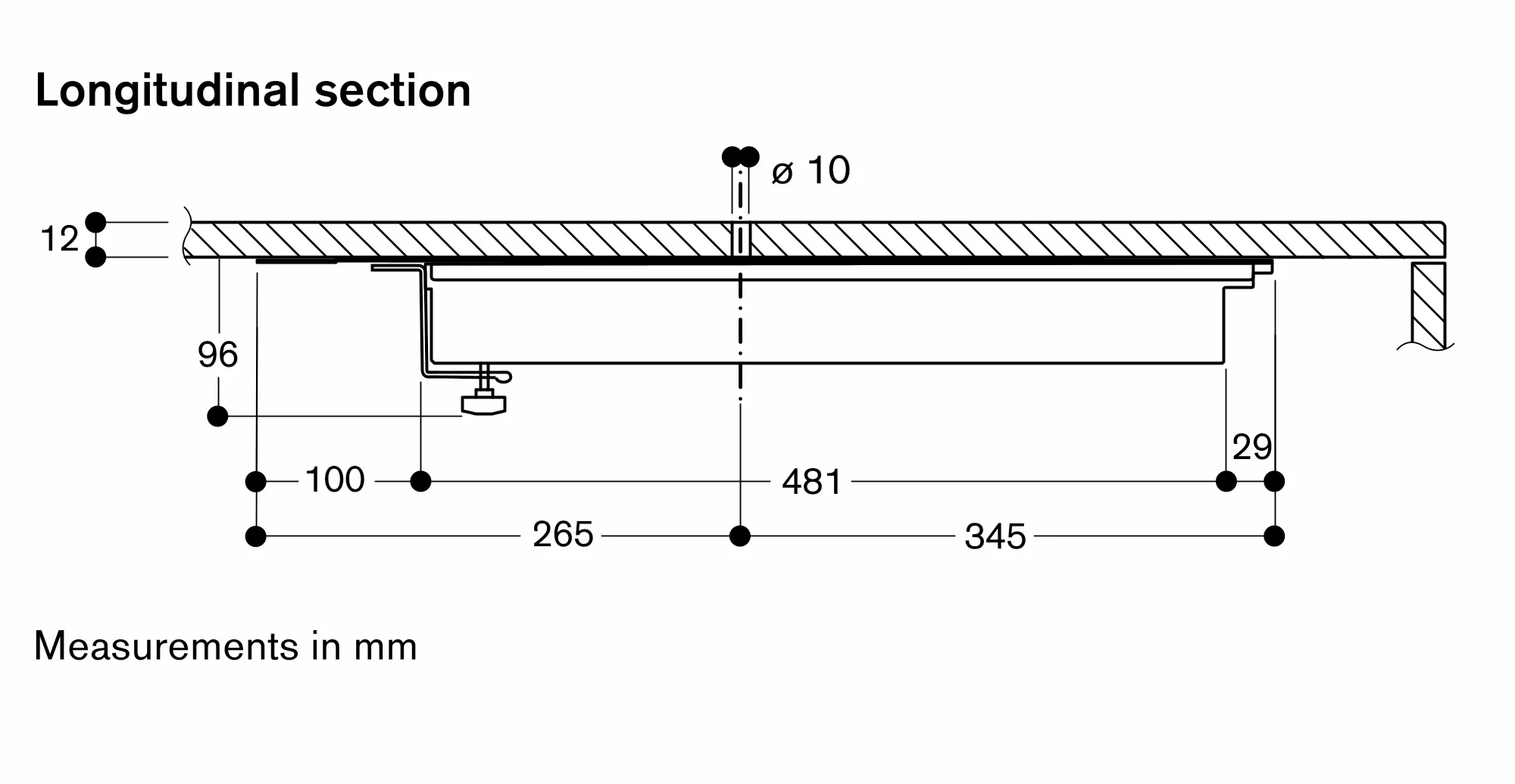

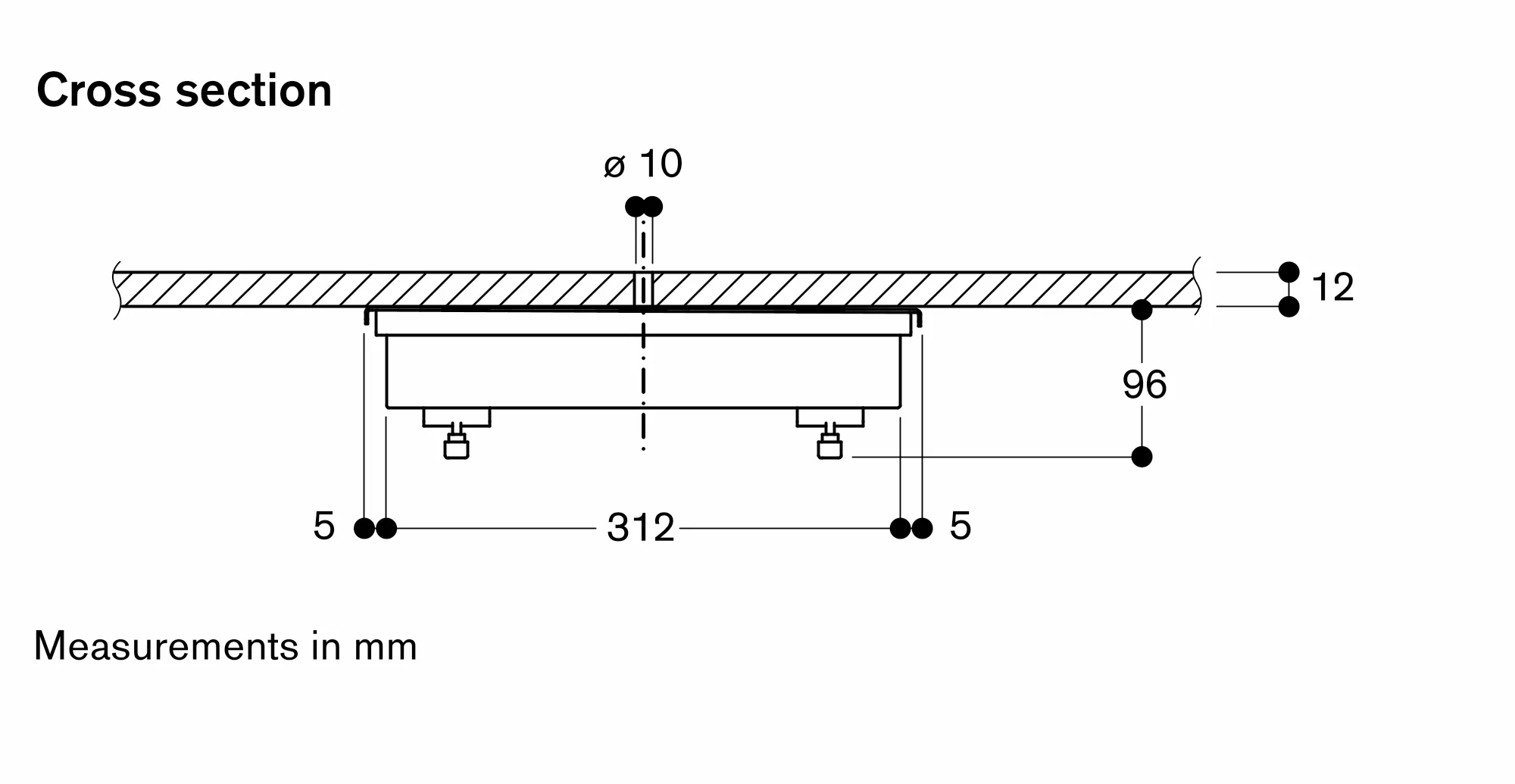

The integrated induction module must be installed under Dekton worktop in 12 mm thickness.

The bearing capacity and stability must be supported using suitable substructures. Take into account the appliance weight and additional loads.

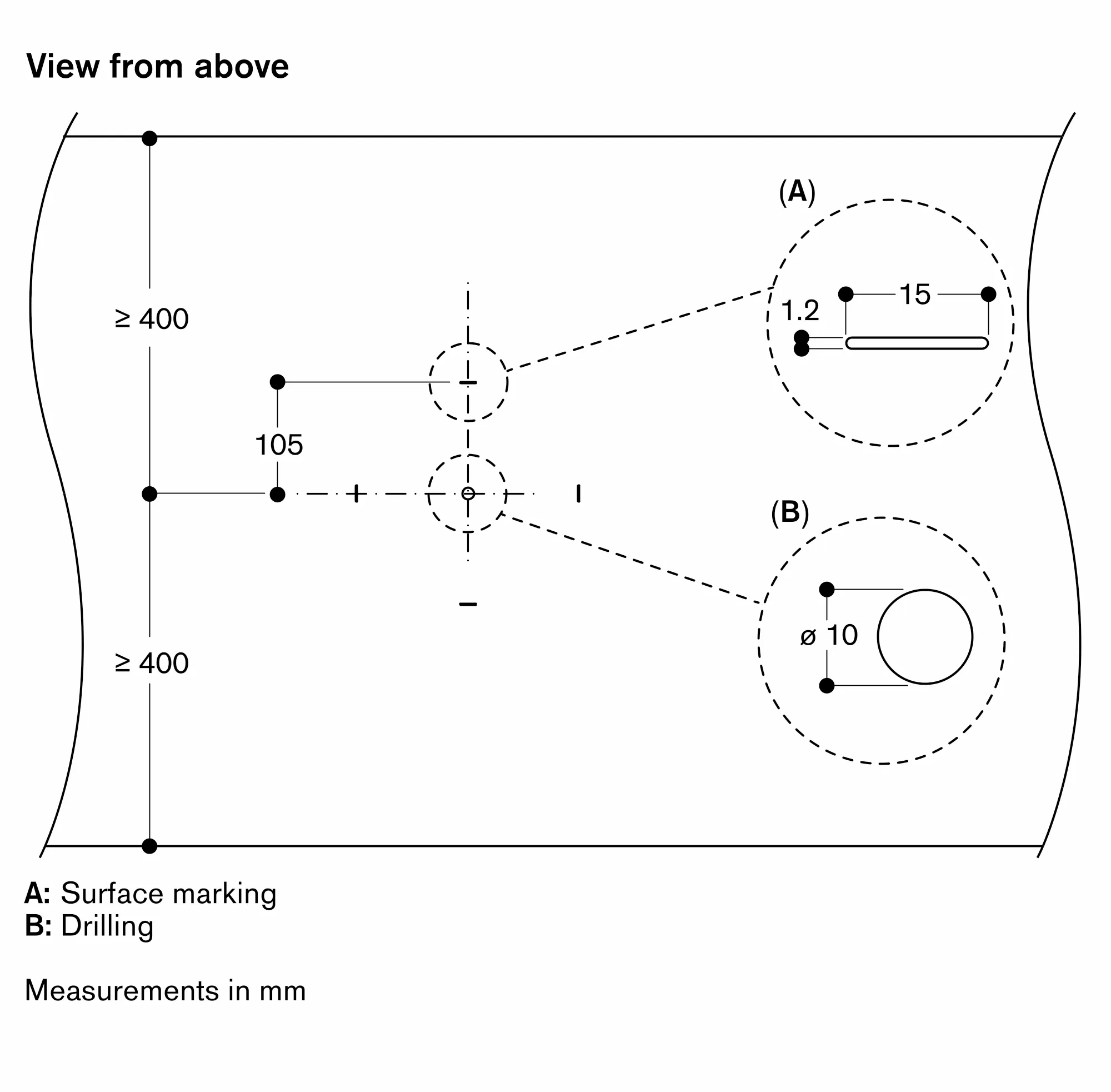

A 10 mm hole needs to be planned in the center of the cooking zone. Markings to indicate the cooking zone need to be planned.

No other cut-outs permitted in the same worktop piece.

The elaboration of the Dekton is done by local fabricators, for a list of recommended fabricators please contact your local representative.

For Dekton fabricators: refer to specification sheet “Marking and drilling protocol for Gaggenau induction” by Cosentino.

Do not install other appliances below, e.g. ovens, refrigerators or dishwashers.

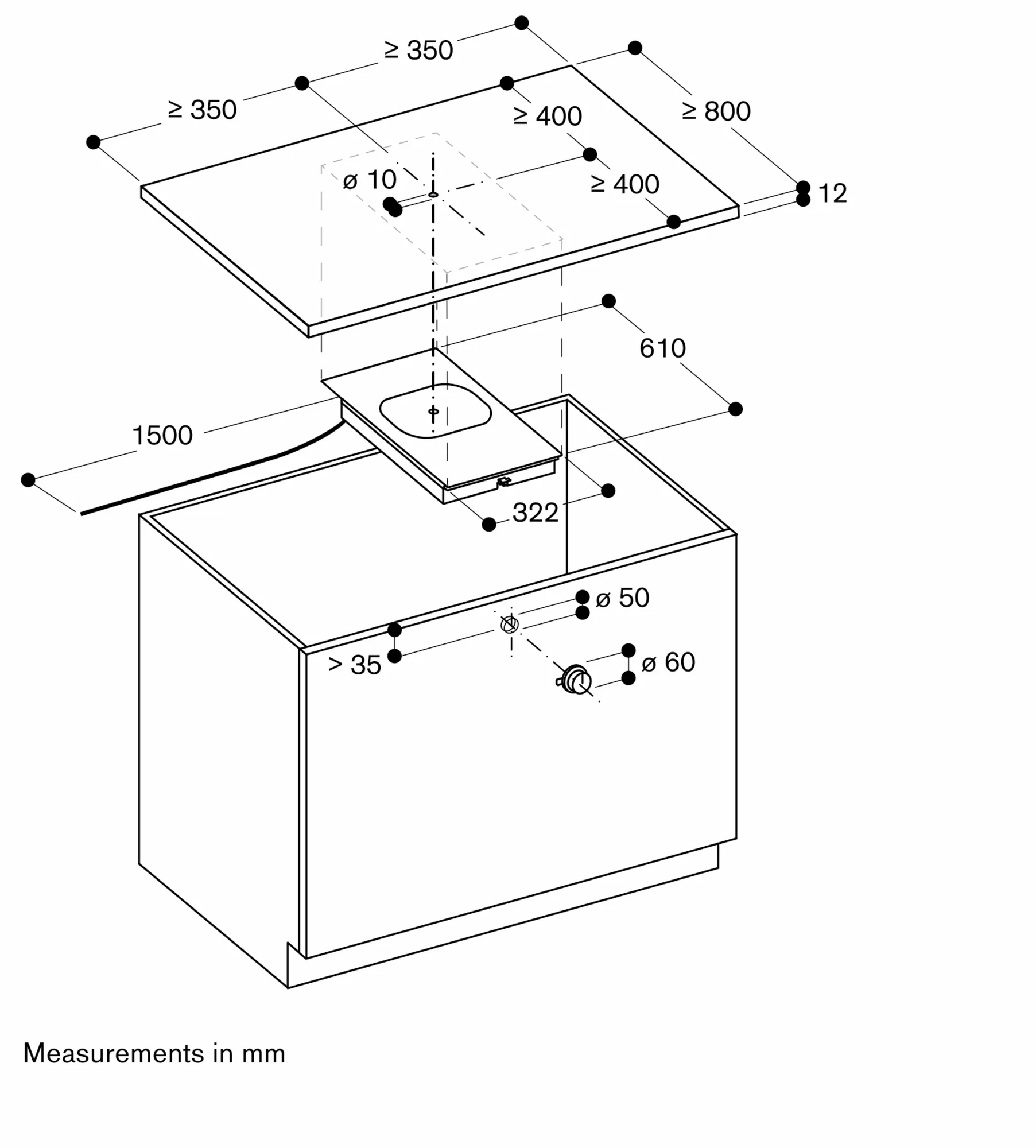

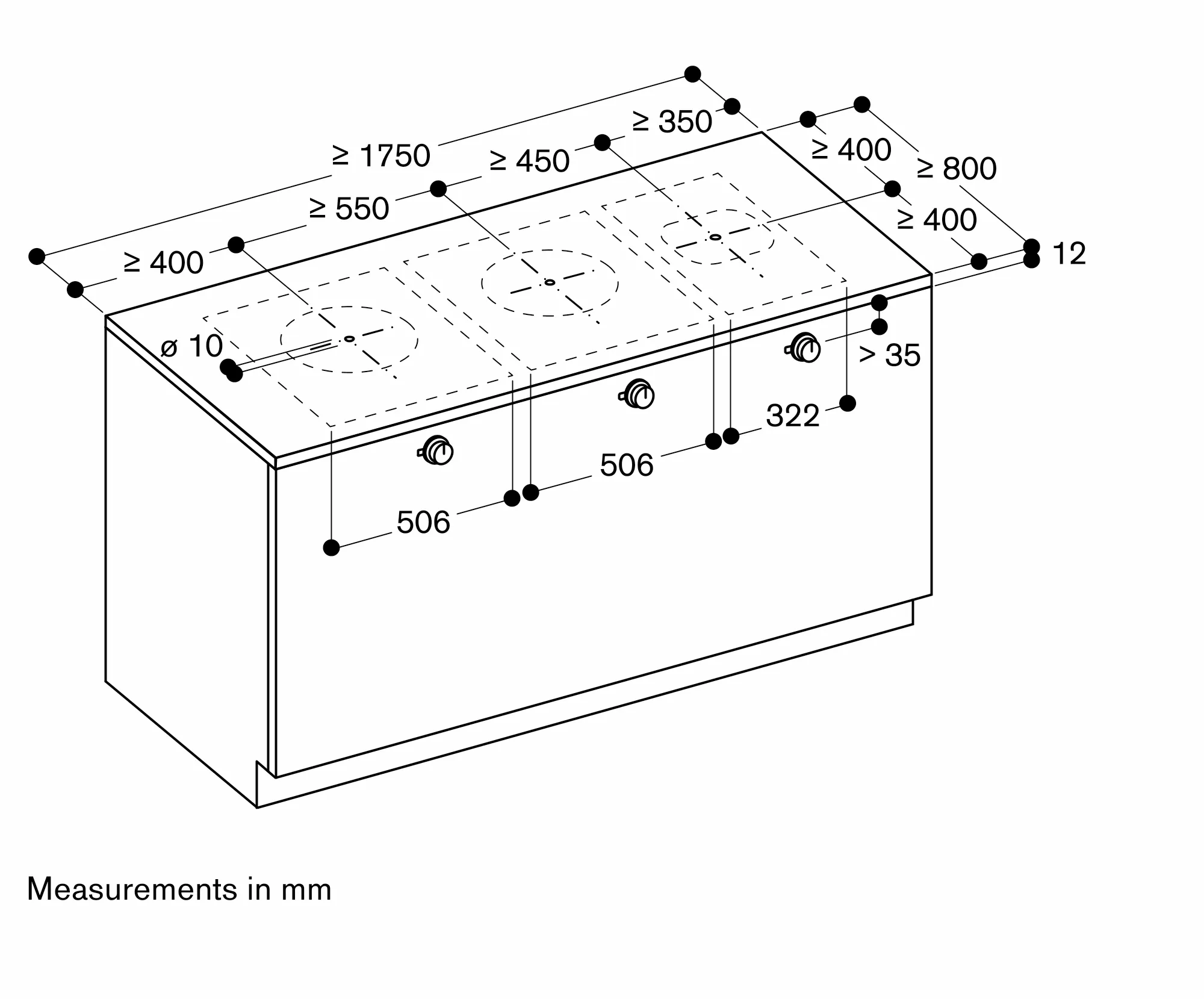

Minimum distances:

Cooking zone center to lateral edge of worktop 350 mm.

Cooking zone center to front and rear edge of worktop 400 mm.

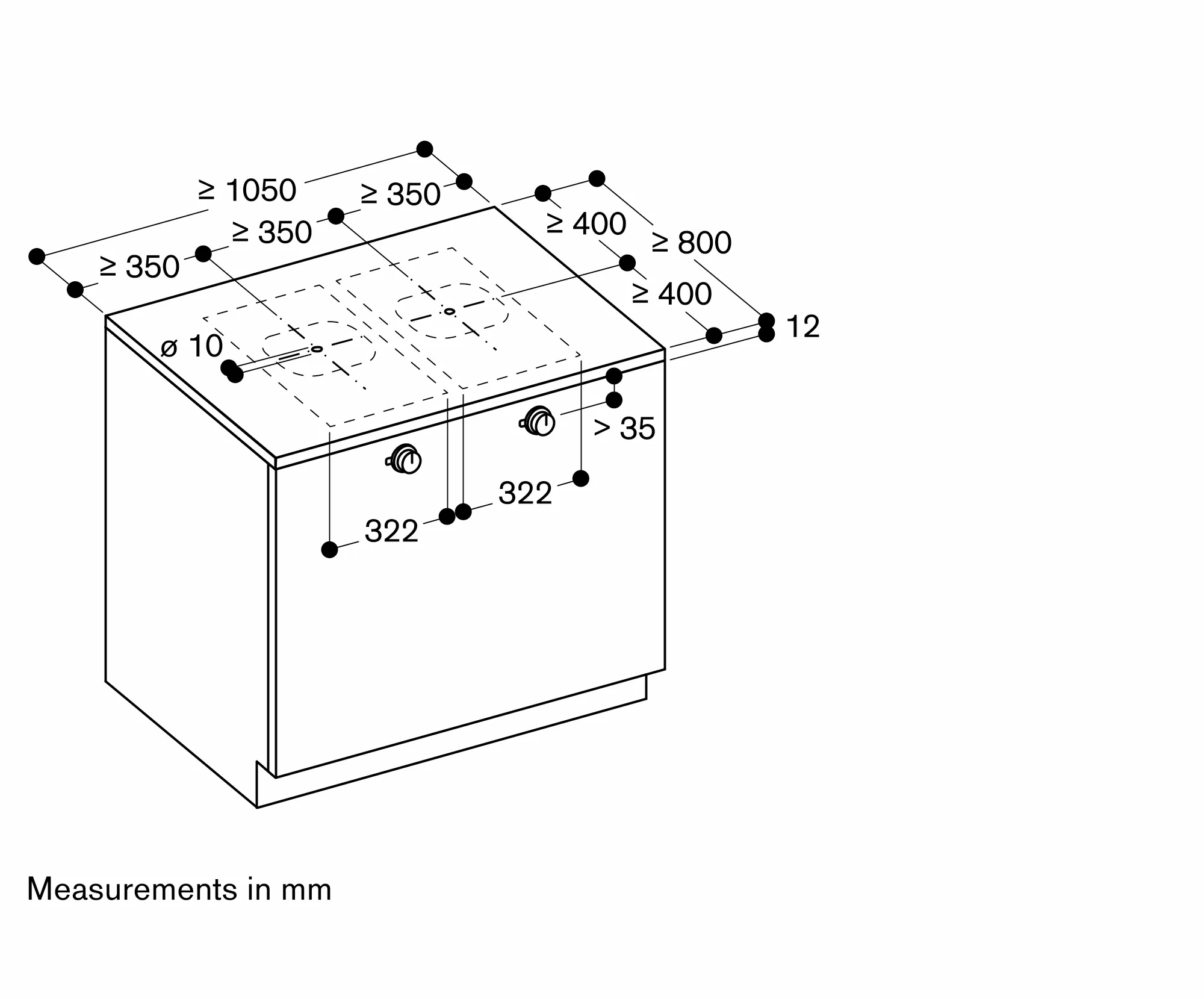

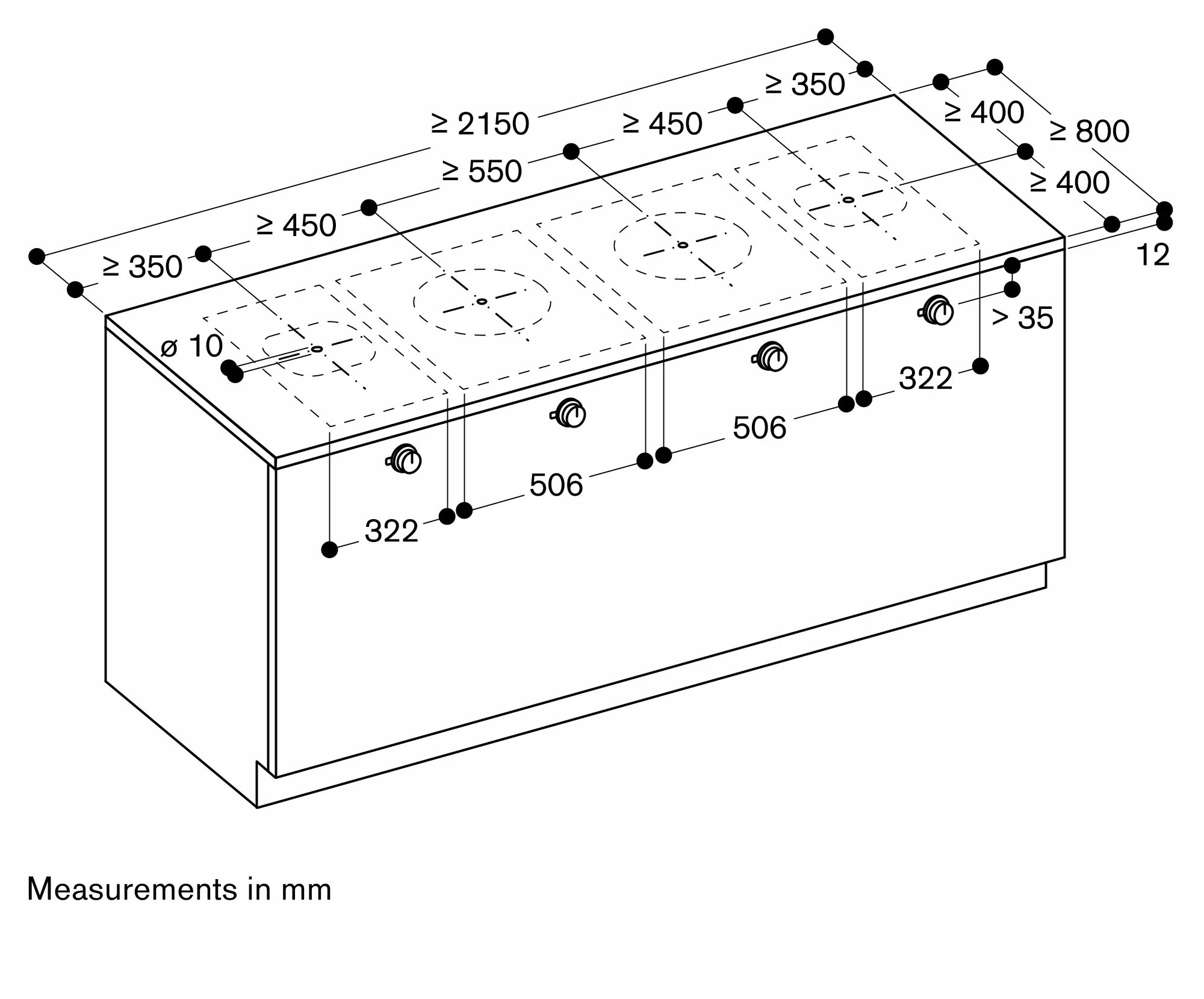

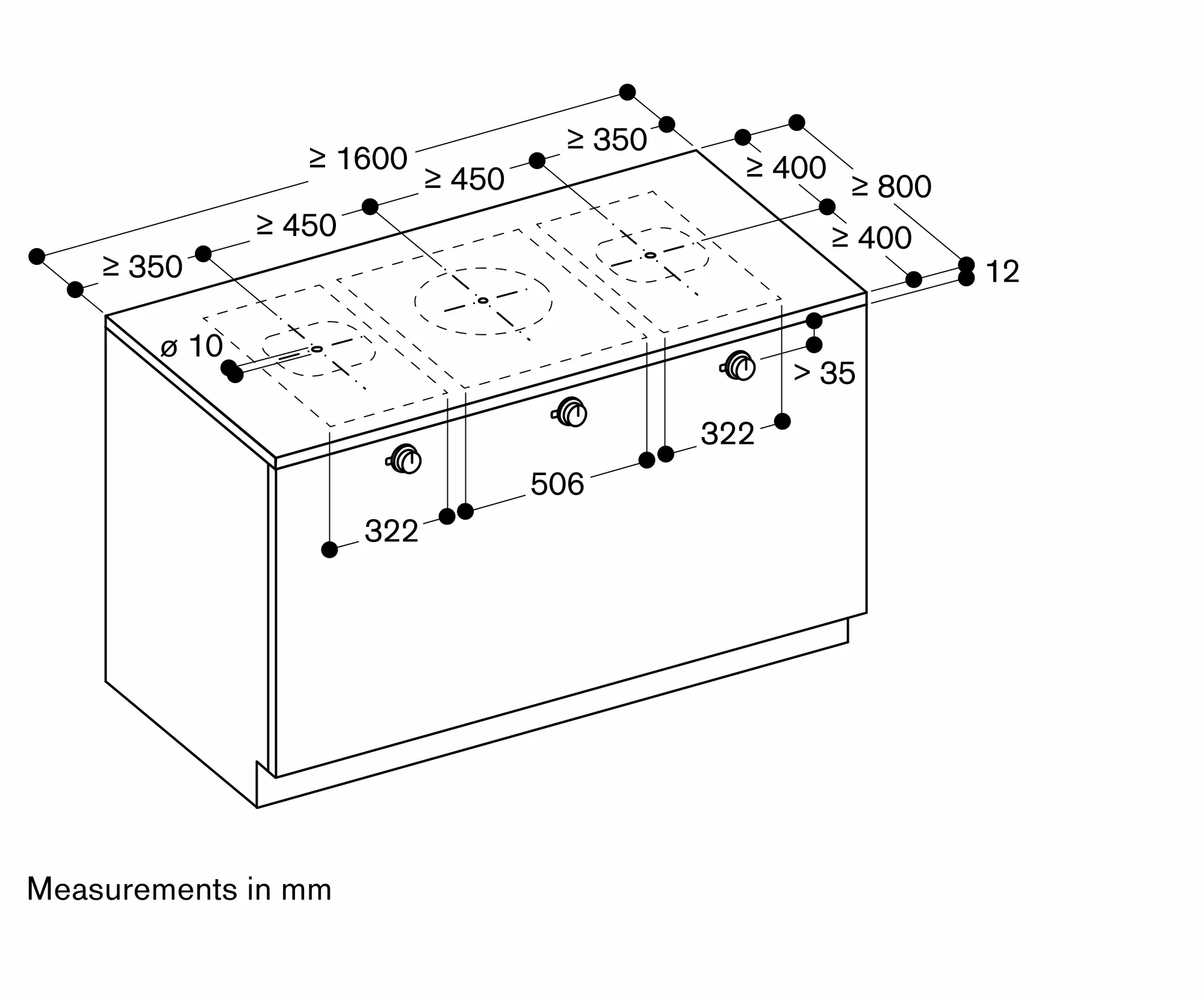

Cooking zone center to next cooking zone center 350 mm or 450 mm depending on combination.

Minimum distances at the back wall of the furniture and openings, refer to dimensional drawings.

Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

Appliance weight: approx. 6.

Total connected load 2.3 KW.
