RF463301AU

Product is no longer available

More information and services related to this product

1 / 10
Photo Nr. 1 of the product RF463301AU
Photo Nr. 2 of the product RF463301AU
Photo Nr. 3 of the product RF463301AU
Photo Nr. 4 of the product RF463301AU
Photo Nr. 5 of the product RF463301AU
Photo Nr. 6 of the product RF463301AU
Photo Nr. 7 of the product RF463301AU
Photo Nr. 8 of the product RF463301AU
Photo Nr. 9 of the product RF463301AU
Photo Nr. 10 of the product RF463301AU
Photo thumb Nr. 1 of the product RF463301AU
Photo thumb Nr. 2 of the product RF463301AU
Photo thumb Nr. 3 of the product RF463301AU
Photo thumb Nr. 4 of the product RF463301AU
Photo thumb Nr. 5 of the product RF463301AU
Photo thumb Nr. 6 of the product RF463301AU
Photo thumb Nr. 7 of the product RF463301AU
Photo thumb Nr. 8 of the product RF463301AU
Photo thumb Nr. 9 of the product RF463301AU
Photo thumb Nr. 10 of the product RF463301AU
Photo thumb Nr. 1 of the product RF463301AU
Photo thumb Nr. 2 of the product RF463301AU
Photo thumb Nr. 3 of the product RF463301AU
Photo thumb Nr. 4 of the product RF463301AU
Photo thumb Nr. 5 of the product RF463301AU
Photo thumb Nr. 6 of the product RF463301AU
Photo thumb Nr. 7 of the product RF463301AU
Photo thumb Nr. 8 of the product RF463301AU
Photo thumb Nr. 9 of the product RF463301AU
Photo thumb Nr. 10 of the product RF463301AU

Technical Overview

bigbox
No
Gaggenau Home Connect
No

Specifications

Stainless steel interior
Generous lighting concept
Integrated ice maker with fixed inlet water connection
Illuminated dispenser for ice cubes, crushed ice and chilled water
Solid aluminium door racks
Net volume 299 litres
Electronic temperature control with digital display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Rest mode certified by Star-K.
Open-door and malfunction alarm.
No-frost technology with fast freezing.
Temperature adjustable from -16 °C to -24 °C.
4-star freezer compartment.
Freezing capacity 14 kg/24 h.
Storage time after a malfunction 14 h.
4 solid metal shelves, 2 of which are manually adjustable.
2 fully extendable drawers with transparent front, 1 of which large, 1 regular.
Bright interior lighting with light pillars.
1 extra deep door rack.
1 door rack with transparent front flap.
Illuminated.
Integrated, with fixed inlet water connection.
Can be switched off.
Ice cube production approx. 1.9 kg/24 h.
Ice cubes and crushed ice.
Removable ice storage container with approx. 3 kg capacity.
Ice water supply approx. 1.5 litres.
2.5 Energy Stars
Noise level 38 dB (re 1 pW).

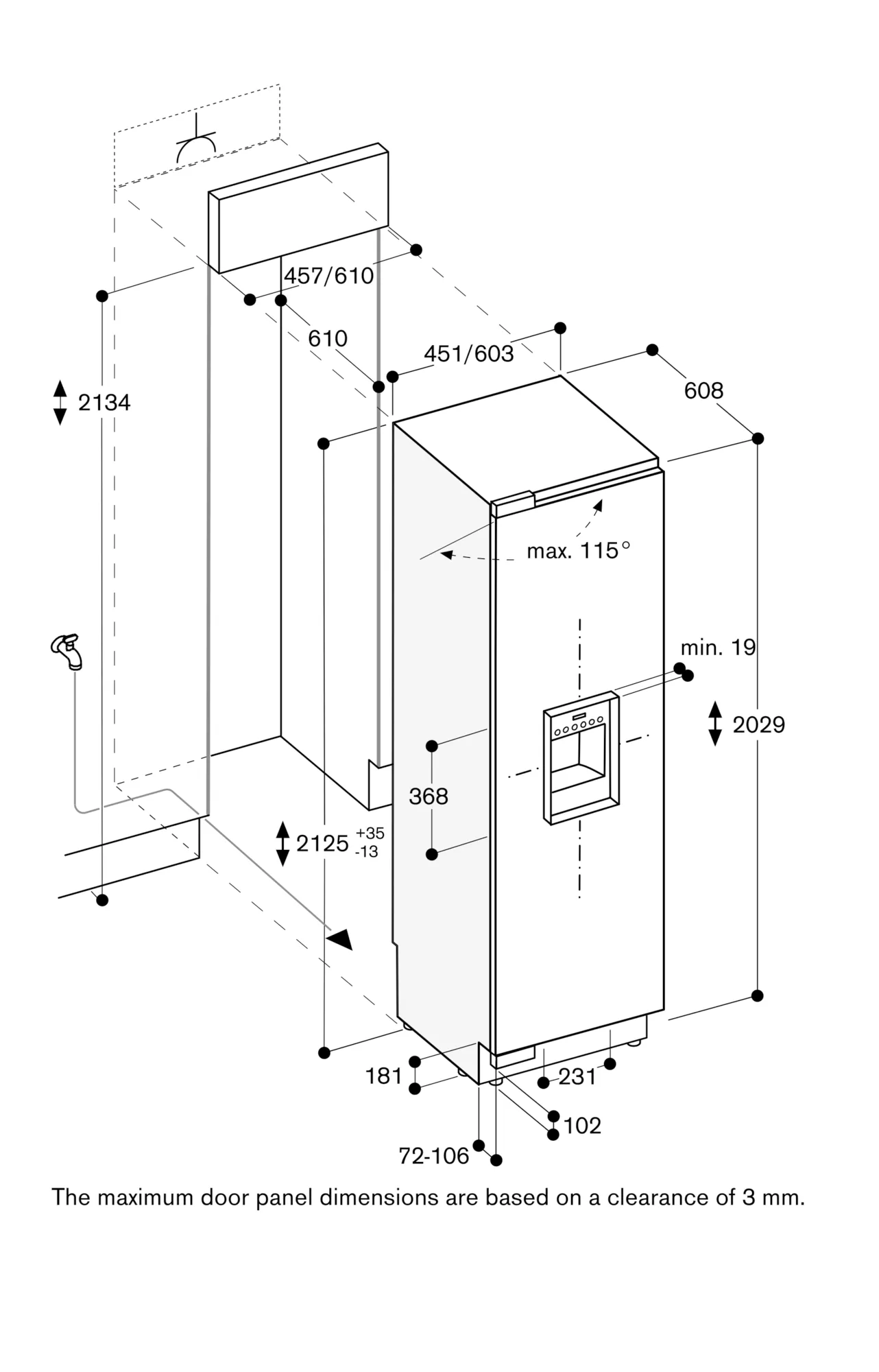

Flat hinge.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 57 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load 0.592 KW.
Connecting cable 3.0 m with plug.
Water inlet.
Water pressure 2 to 8 bar.
