Technical Overview
Product name/family
Cooking zone ceramic
Type of control setting and signalling devices
illuminated, Twist-Pad control, front, control knob
Built-in design
Standard design
Number of gas burners
0
Number of cooking zones
3
FlameSelect
No
Gaggenau Home Connect
No
Specifications
Sturdy stainless steel frame
Twist-Pad control with removable magnetic knob
Flex function for combining the rectangular cooking areas
Free positioning of cookware inside combined cooking areas
Professional cooking function for spliting the cooktop into 3 predefined heat areas
Cooking sensor function for temperature control in pots
Frying sensor function for temperature control in pans
Large cooking zone for pots up to ø 32 cm
Easy control of all functions with bicoloured display
2 flex induction cooking areas 19x23 cm (2200 W, with booster 3700 W), linked together 38x23 cm (3300 W, with booster 3700 W).
1 induction cooking zone ø 21 cm (2200 W, with booster 3700 W), automatically switches to ø 26 cm (2600 W, with booster 3700 W) and to ø 32 cm (3300 W, with booster 3700 W).
Twist-Pad control with removable magnetic knob.
User friendly control with bicoloured display (white / orange).
Cooking zone and cooking area marking.
Electronic power control in 17 output levels.
Flex function for rectangular cooking areas.
Professional cooking function.
Cooking sensor function (in use with cooking sensor CA 060 300).
Frying sensor function.
Booster function for pots.
Booster function for pans.
Keep warm function.
Stopwatch.
Cooking timer for up to 99 minutes.
Short-term timer.
Options menu.
Power management.
Main switch.
Operation indicator.
Pot detection.
2-stage residual heat indicator.
Child lock.
Safety shut-off.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

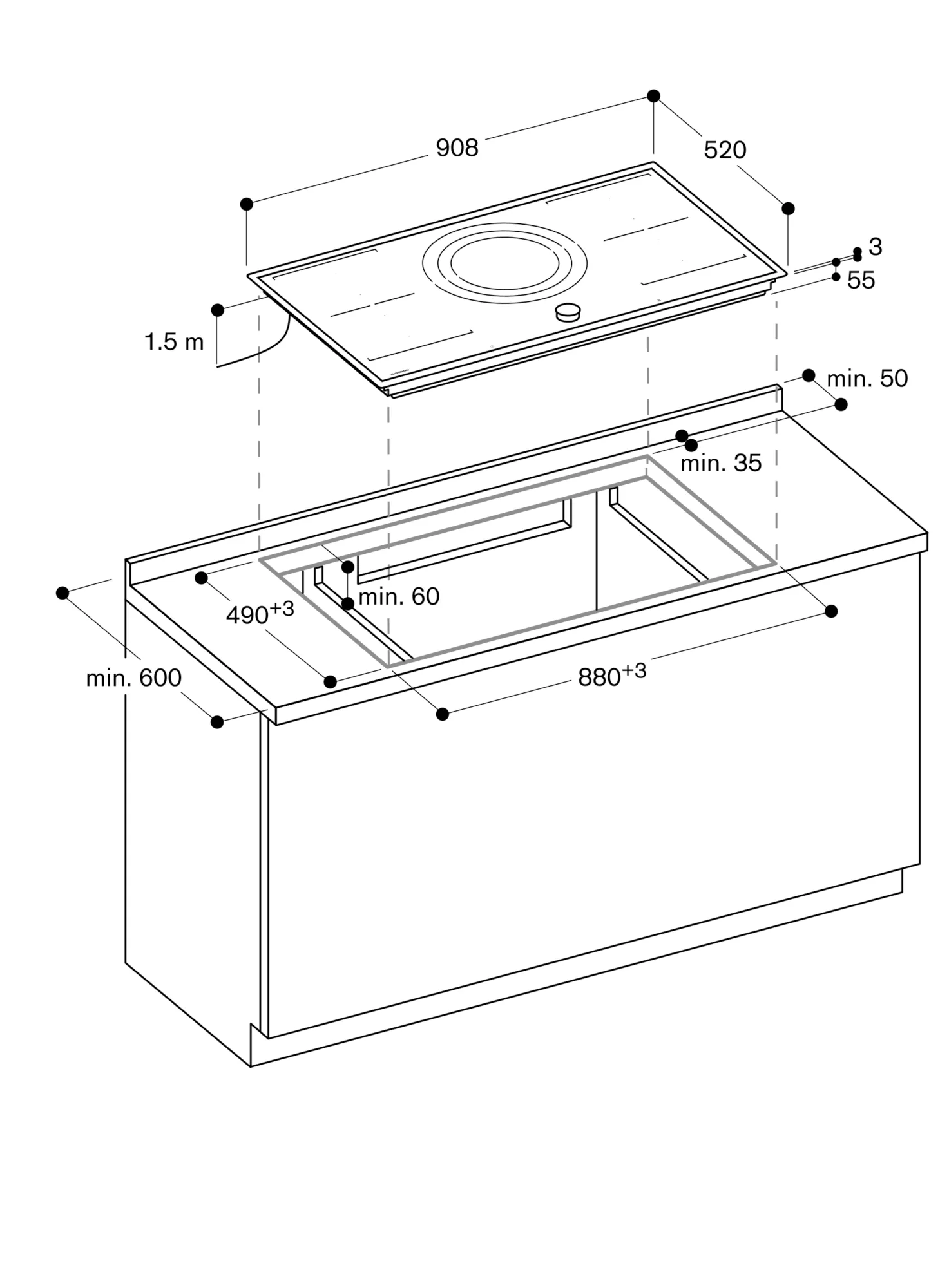

Immersion depth 55 mm.
Appliance must be fixed from underneath.
Cooktop clamping range: 20 - 40 mm.
Appliance weight: approx. 22.
Total connected load 11.1 KW.
Connecting cable 1.5 m without plug.
