Technical Overview
Installation typology
Built-in
Width of appliance
60 cm
Main colour of product
Silver metallic
Sound power level extraction (max)
58 dB
Air output extraction (max)
490 m³/h
Air output extraction (intensive)
710 m³/h
Type of extraction
air extraction / air recirculation
Gaggenau Home Connect
No
Specifications

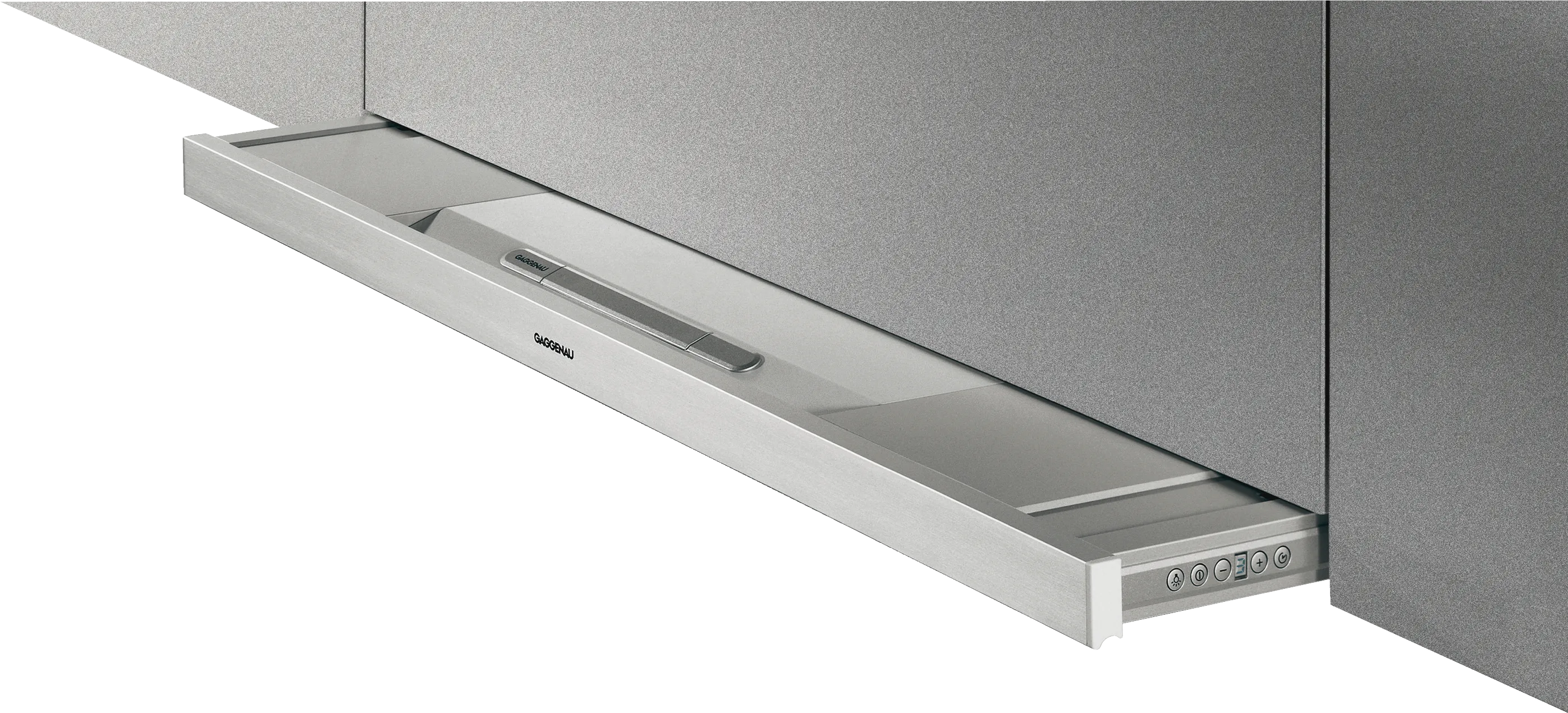

Invisibly integrated in an individual furniture front
Air extraction or air recirculation system
Controls can be individually placed
Dimmable, warm white halogen light
Performance and noise level, output level 3/Intensive: Air output according to EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-2-13. Odour reduction for air recirculation in accordance with EN 61591.
Air extraction: 490 / 710 m³/h. 58 / 66 dB (A) re 1 pW. 44 / 52 dB (A) re 20 μPa.
Air recirculation: 380 / 440 m³/h. 63 / 73 dB (A) re 1 pW. 49 / 59 dB (A) re 20 μPa.
Controls on the right, left or top side of the steam screen.
3 electronically controlled power levels.
Intensive mode.
Interval ventilation, 5 min.
Run-on function, 10 min.
Grease filter saturation indicator.
2 cartridge-type grease filters.
Lighting colour 2800 K.
Dimmable halogen light 2 x 20 W, SoftLight.
Illuminance 339 lx.
Light can be switched on separately.
Extendible steam screen 155 mm with filter.
DN 150 or DN 125 exhaust air pipe connection.
Energy efficiency class C.
Energy consumption 103.2 kWh/year.
Ventilation efficiency class C.
Ilumination efficiency class F.
Grease filter efficiency class B.
Sound level min. 43 dB / max. 58 dB normal mode.
For calculating the exhaust air line go to Rodun online at www.gaggenau.com.
Vario cooktops with intensive production of vapours like VR/VP should be placed in the middle beneath the hood (in this case air recirculation is not recommended).
Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).
Clearance above electric appliances min. 43 cm.
To be installed in an upper cabinet without base, but with spice rack.
Minimum cabinet depth 293 mm (carcass dimensions).
Handle panel can be replaced by furniture trim.
Installation in a 60 cm wide upper cabinet is possible.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Total connected load 240 W.
Connecting cable 1.3 m with plug.
