GAGGENAU logo
OvensAccessoriesAD850050

Air duct part
AD850050 • 00571661

1 / 0
Photo Nr. 1 of the product AD850050

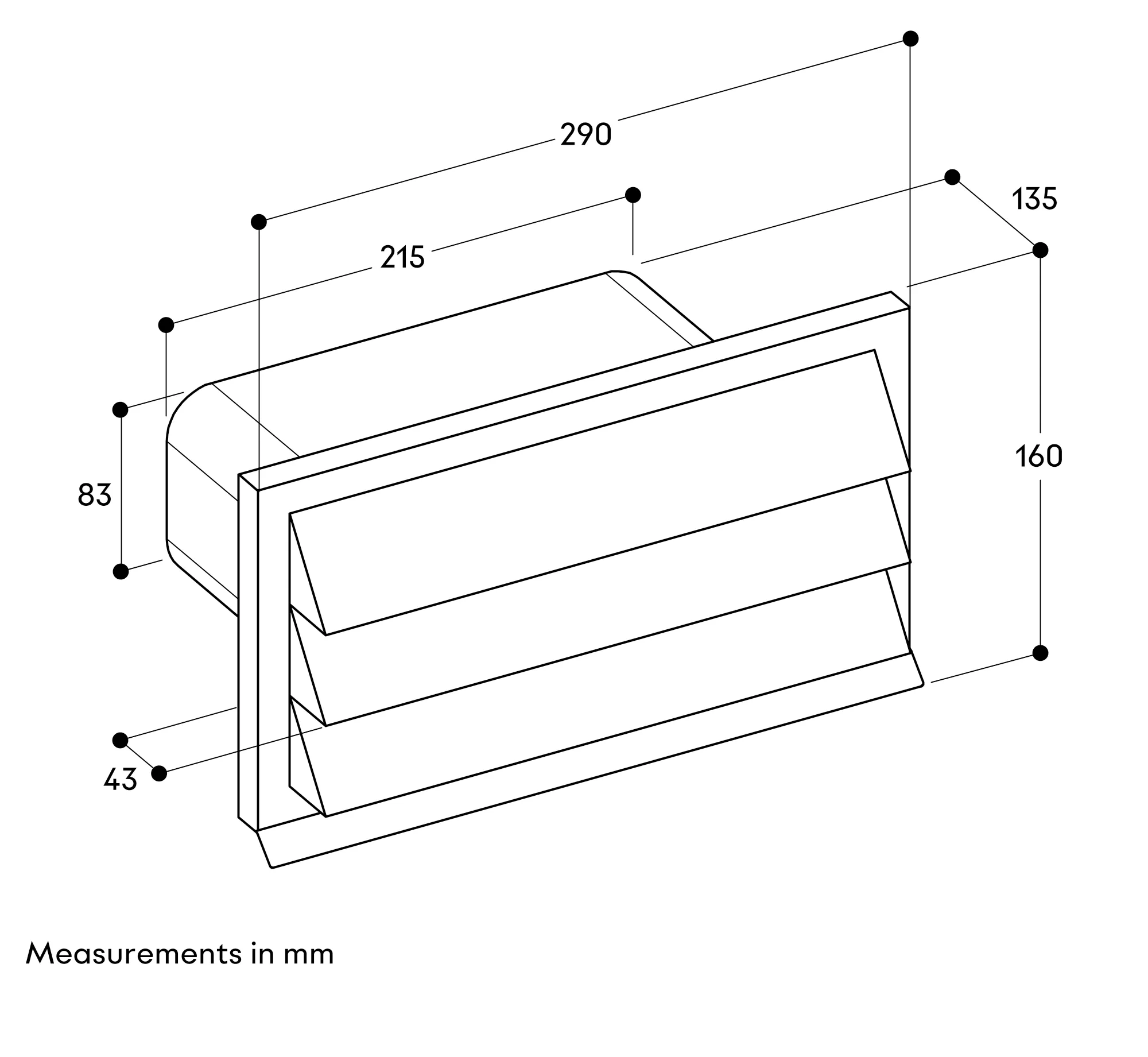

Photo Nr. 2 of the product AD850050
Photo Nr. 3 of the product AD850050

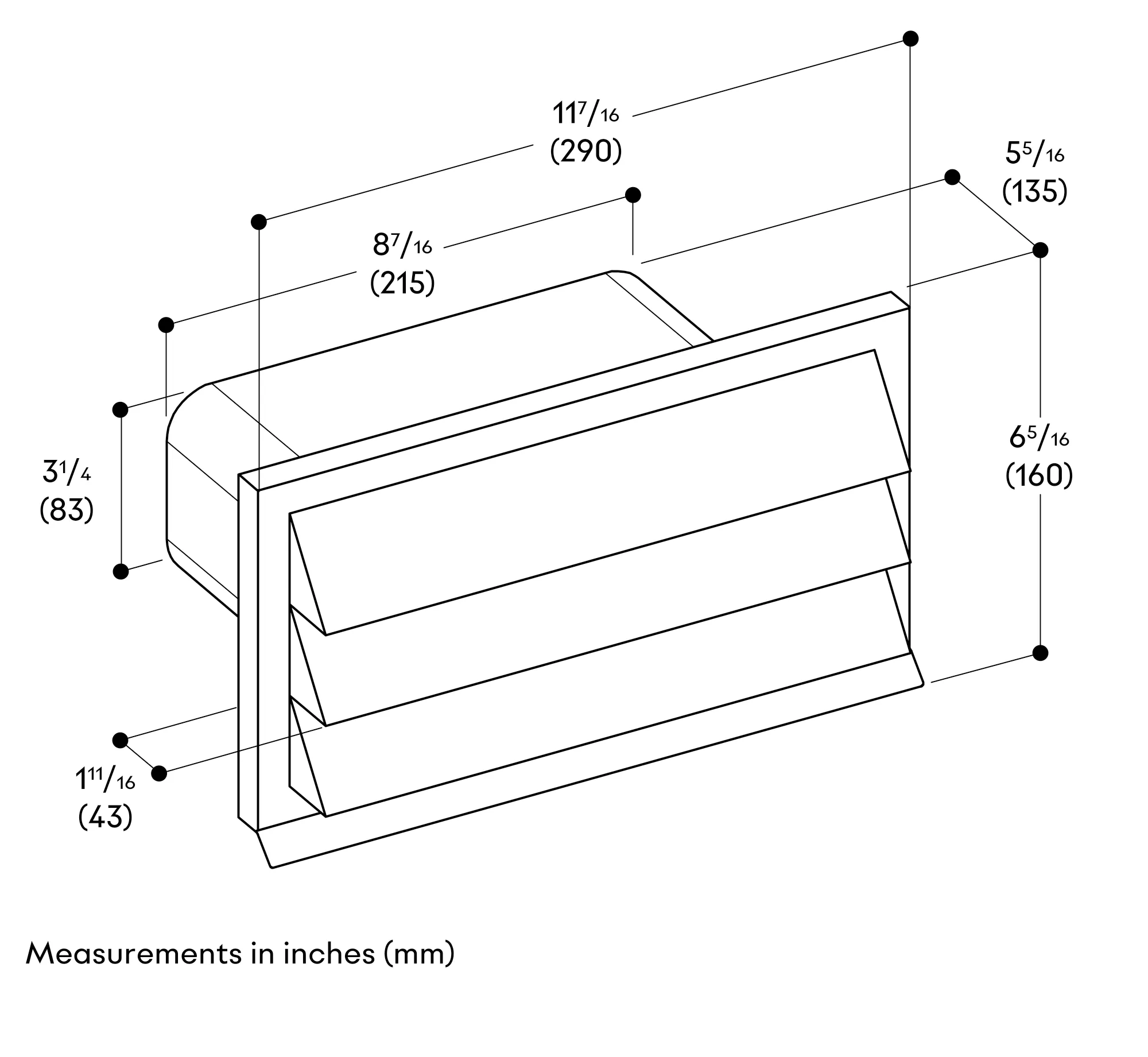

Photo Nr. 4 of the product AD850050
Photo Nr. 5 of the product AD850050
Photo thumb Nr. 1 of the product
Photo thumb Nr. 2 of the product
Photo thumb Nr. 3 of the product
Photo thumb Nr. 4 of the product
Photo thumb Nr. 5 of the product
Photo thumb Nr. 1 of the product
Photo thumb Nr. 2 of the product
Photo thumb Nr. 3 of the product
Photo thumb Nr. 4 of the product
Photo thumb Nr. 5 of the product

Air duct part
AD850050 • 00571661

Air duct part
AD850050 • 00571661

Check appliance compatibility

How to find your E-Number
The model number (E-number) is located on the type plate of your device.

Specifications

Little loss of airflow due to large stainless steel outlet louvres.
Compact dimensions with flat structure.
Weatherproof stainless steel louvres.
Integrated one-way flap.
Connection piece flat duct DN 150.
Direct connection of flat duct DN 150 without pipe connector.

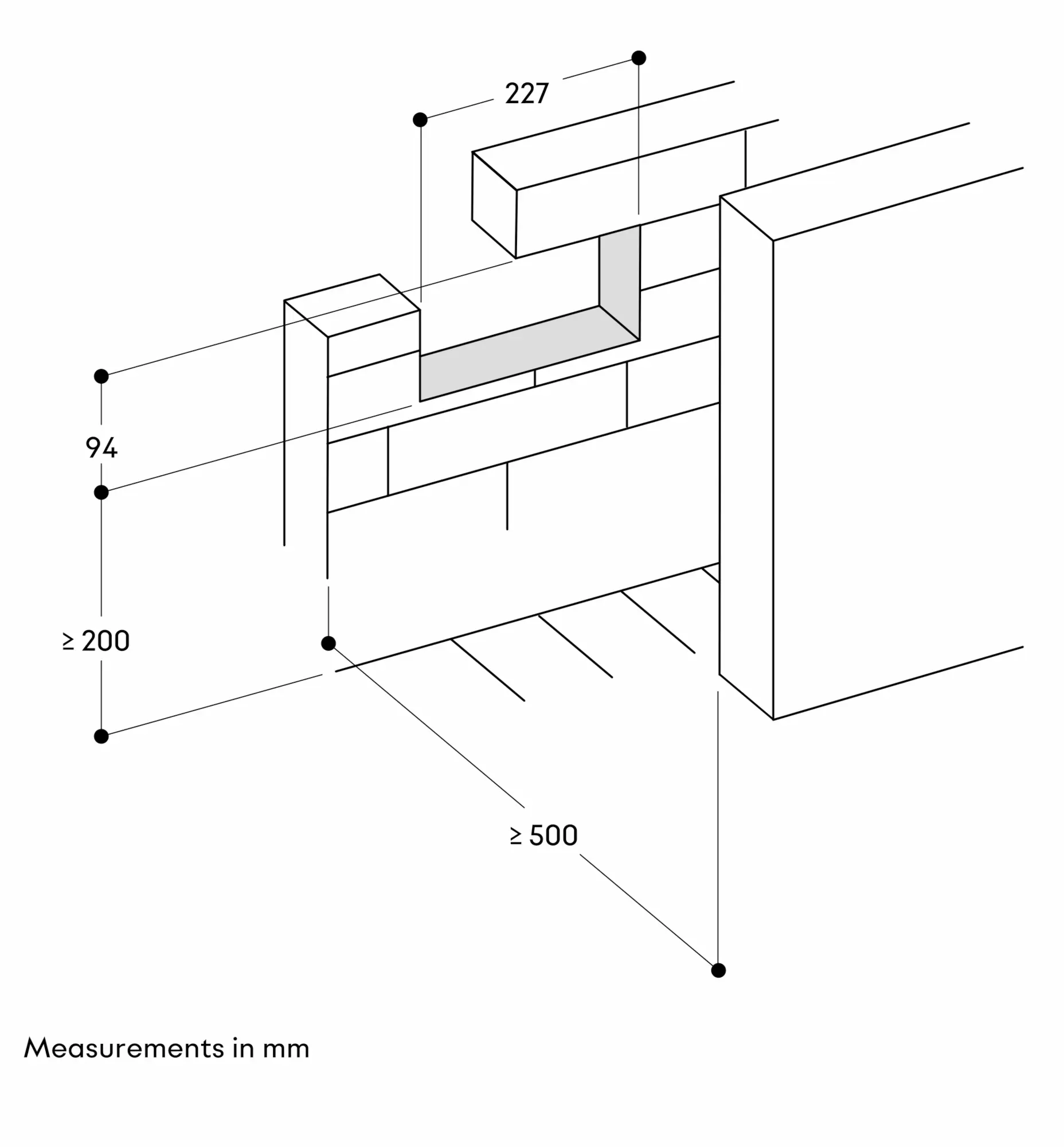

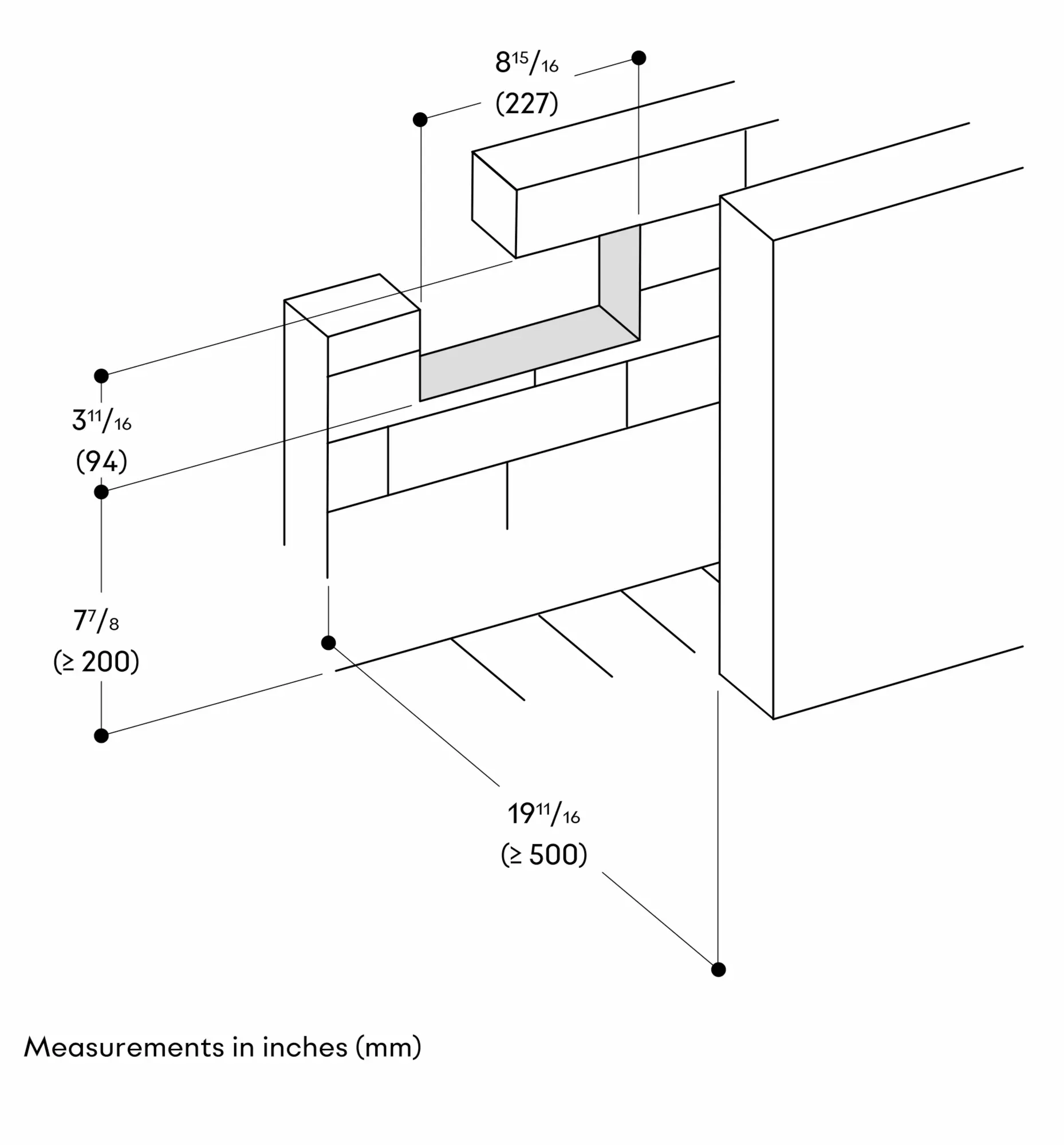

Wall breakthrough 230 x 100 mm.
