Up to 61.2 MJ/h kW on 5 burners

Solid smooth-surface cast iron pan supports

Automatic fast ignition, electronic flame monitoring

1 three-ring wok burner (300 W – 5000 W), suitable for pots up to max. ø 32 cm.

2 two-ring high output burners with 14.4 Mj/h, suitable for pots up to max. ø 28 cm.

2 two-ring standard burners with 7.2 Mj/h, suitable for pots up to max. ø 24 cm.

Integrated control panel with cooking zone and output level markings.

One-handed operation.

Gas valve with fine control.

Three-part cast iron pan support with flat, continuous pot surface.

Brass burner ring(s).

Electronic flame monitoring with automatic re-ignition.

Automatic fast ignition.

Preset of natural gas (10mbar)

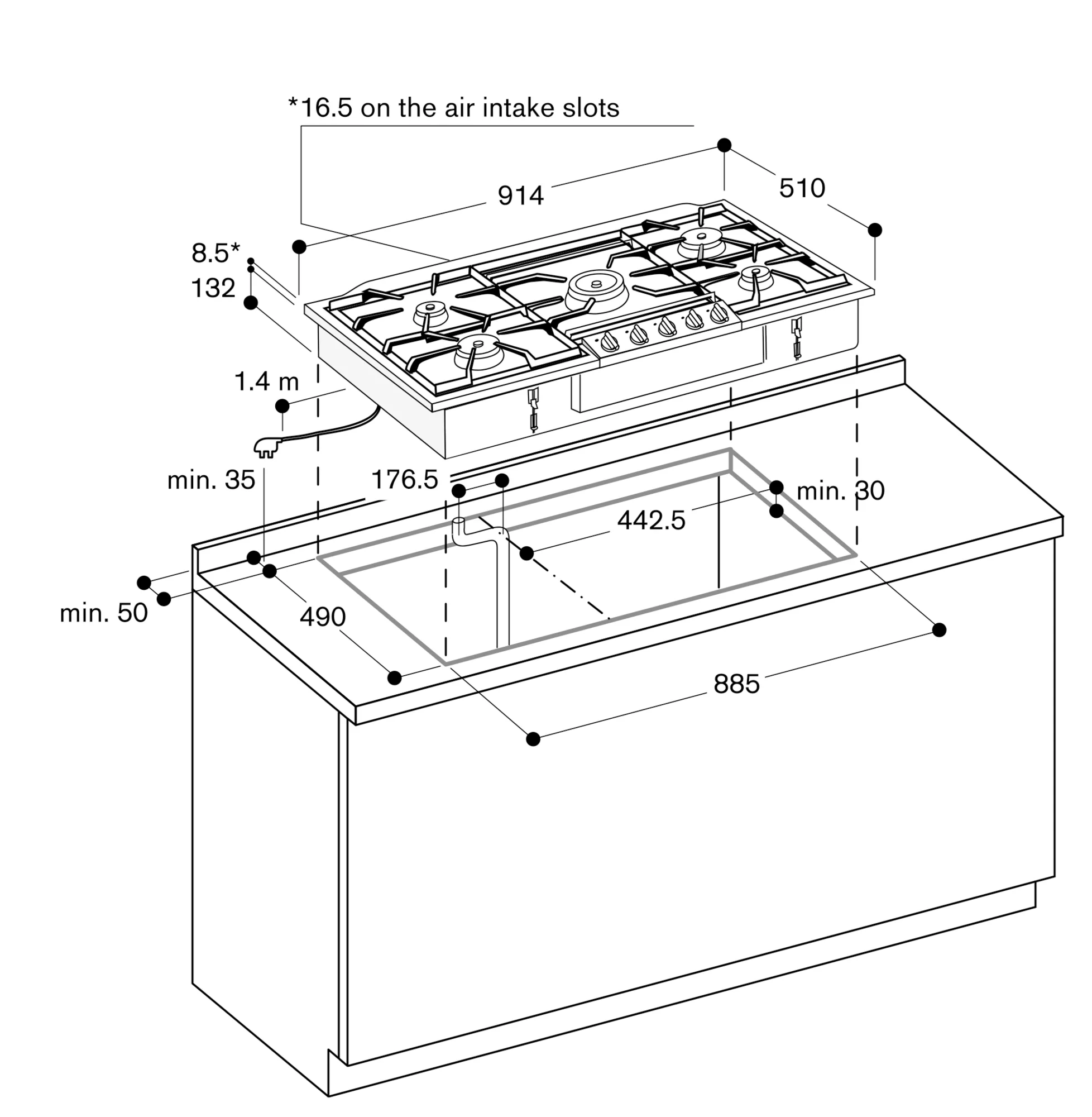

Appliance dimensions: (W x D) 914 mm x 510 mm

Installation dimensions: (H x W x D) 132 mm x 885 mm x 490 mm

Special nozzles can be ordered as spare parts.

Plan for an electrical connection (the appliance is not operable without power supply).

Panel thickness 16 - 26 mm.

Air intake from above.

No intermediate shelf required.

Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.

Installation in a 90 cm wide lower cabinet is required.

An oven can be installed under the cooktop.

Appliance must be fixed from underneath.

A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

Cooktop clamping range: 30 - 50 mm.

With a total connected load of more than 39.6 MJ/h local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed. Minimum clearance between gas cooktop(s) with more than 39.6 MJ/h (11kW) and ventilation hood 70 cm.

Appliance weight: approx. 28.

Total connected load gas 61.2 MJ/h

Connecting cable 1.4 m with plug.

Total connected load electric 25.0 W.
